Plinth Beam Building

If you fill excess soil inside your site, make space wherever the plinth beam will come. Then, PCC bedding will be done wherever the plinth beam will come.

Now, the barbender will prepare the plinth beam.

Centring team will do centring wherever the plinth beam comes.

The building contractor will pour concrete inside the plinth beam.

After all these tasks, you must fill the soil inside the plinth beam and stop water to compress the soil. Once the soil gets settled well, remove any excess soil inside the plinth beam.

You should remove soil so that they need to put jelly, msand and cement (like PCC work) on top of it. This should not cross the plinth beam height.

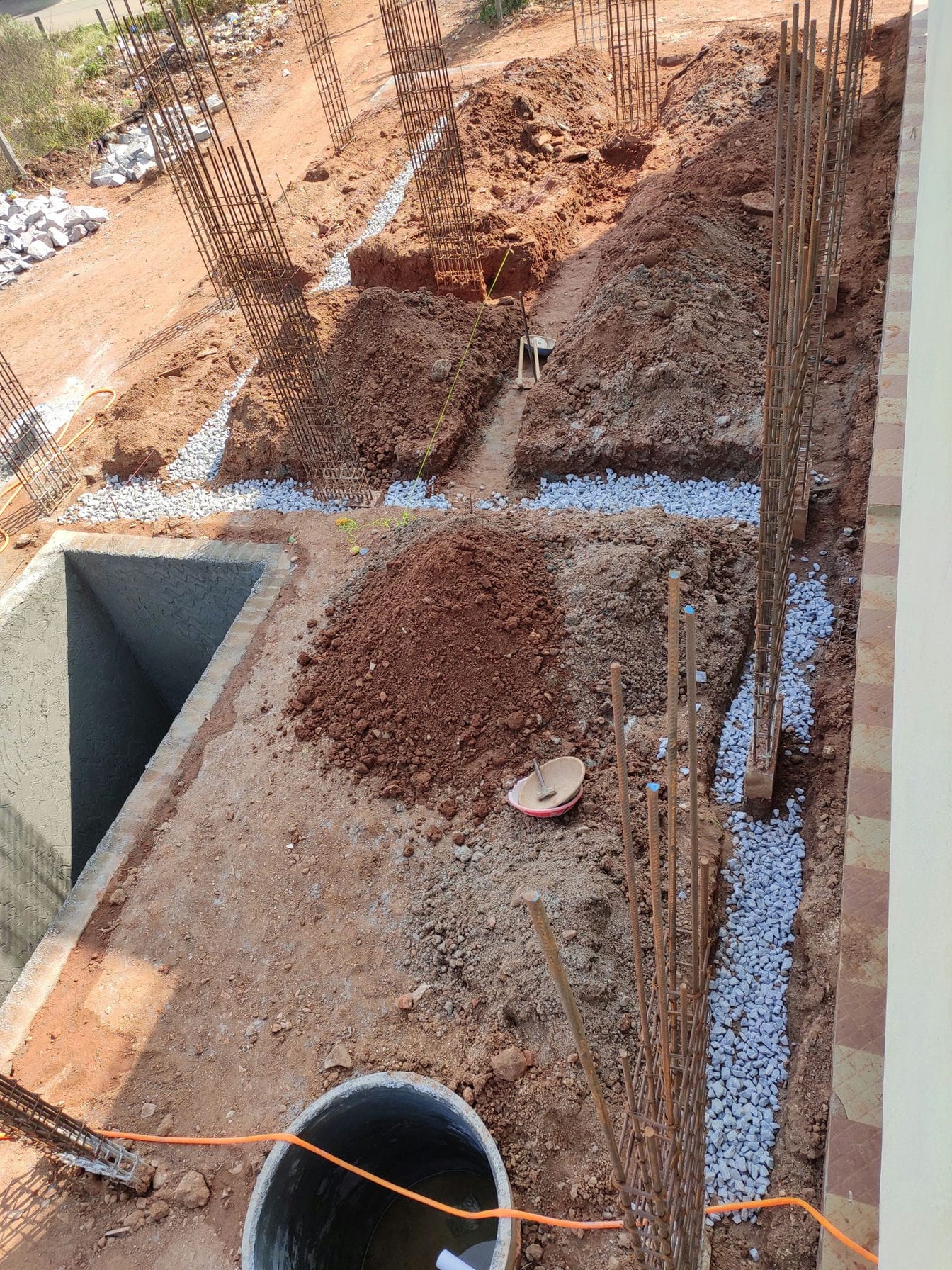

removing excess soil to build plinth beam

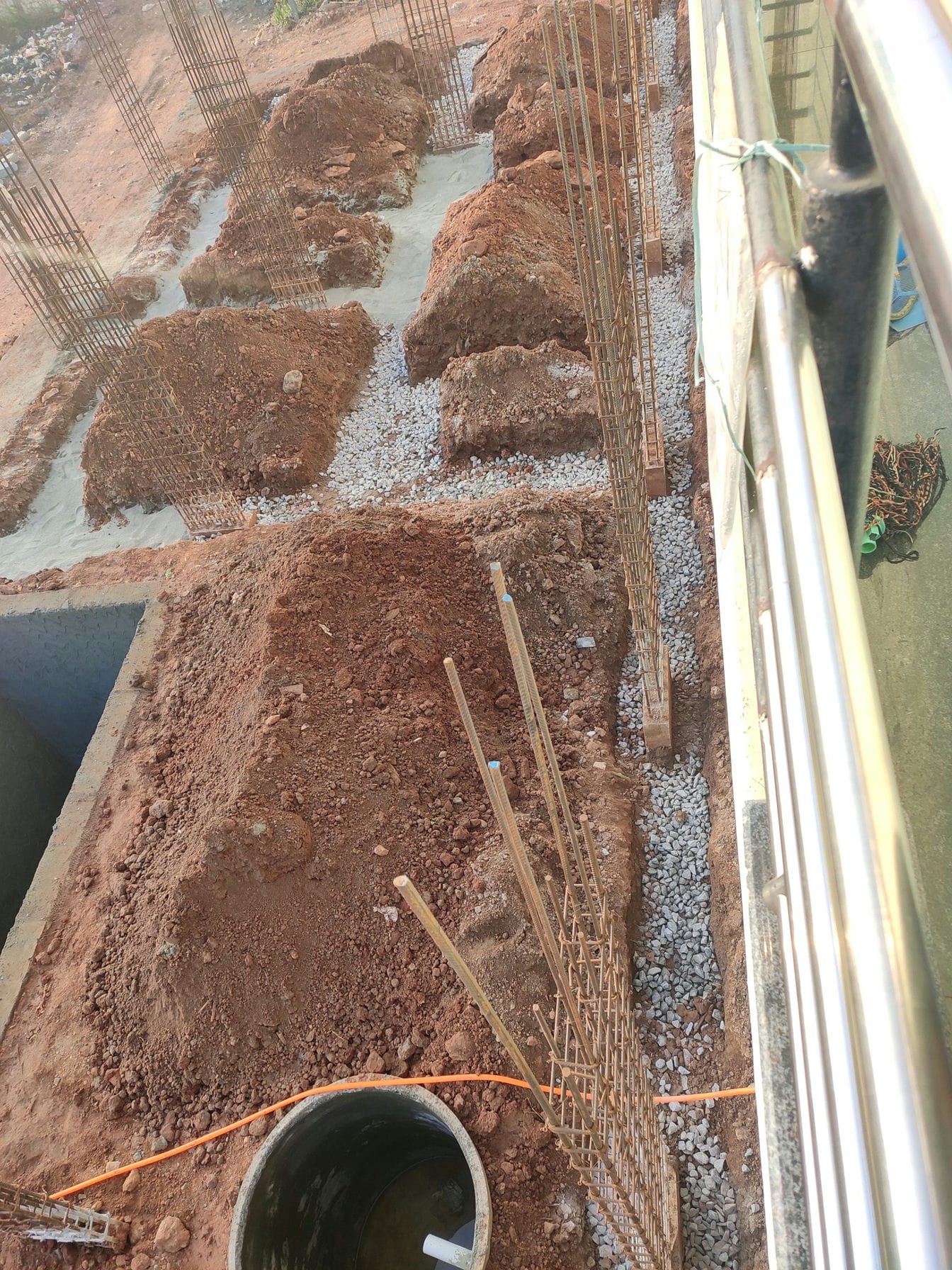

putting Jelly, msand and cement mix where plinth beam comes

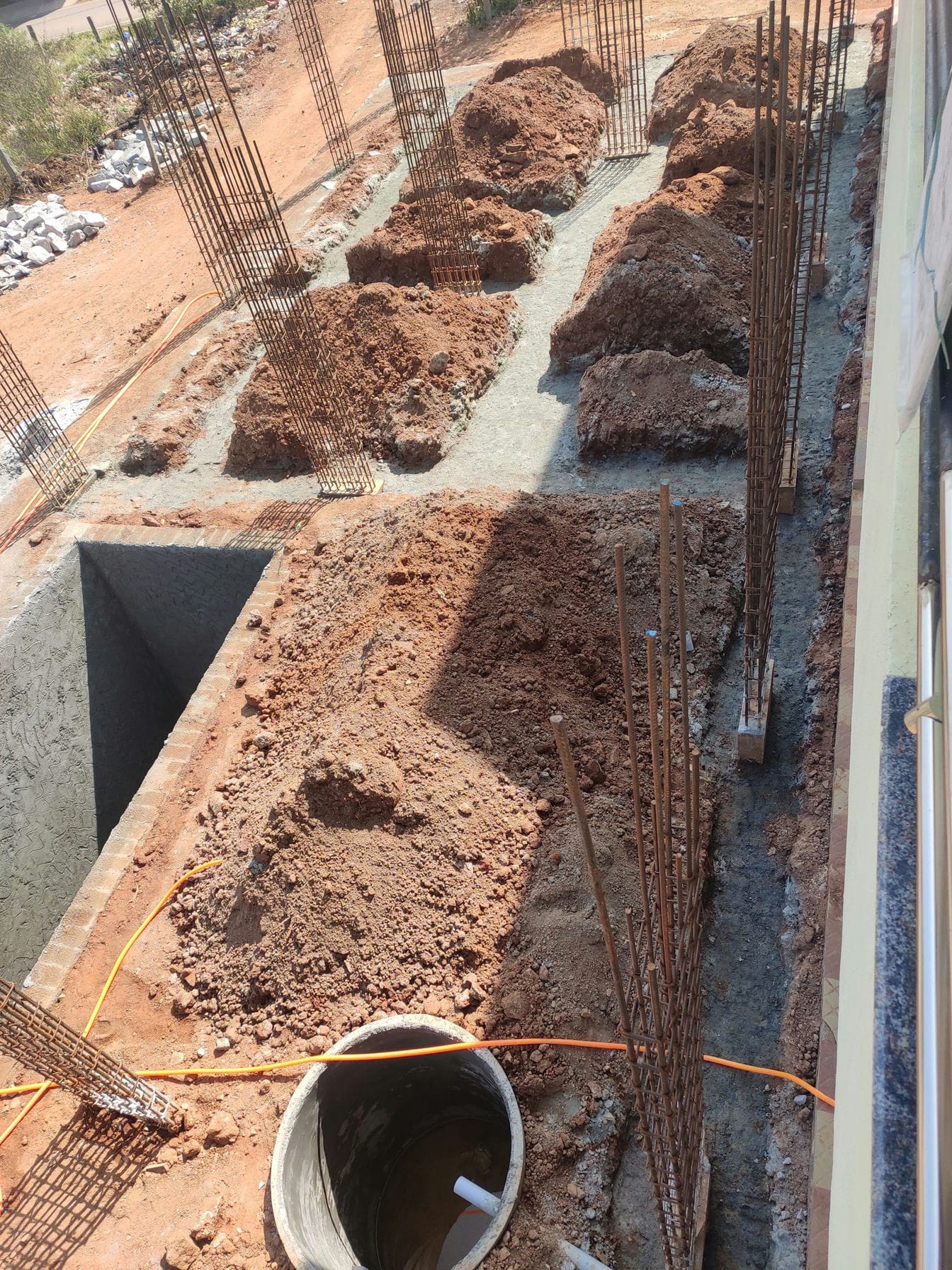

after PCC work where plinth beam comes

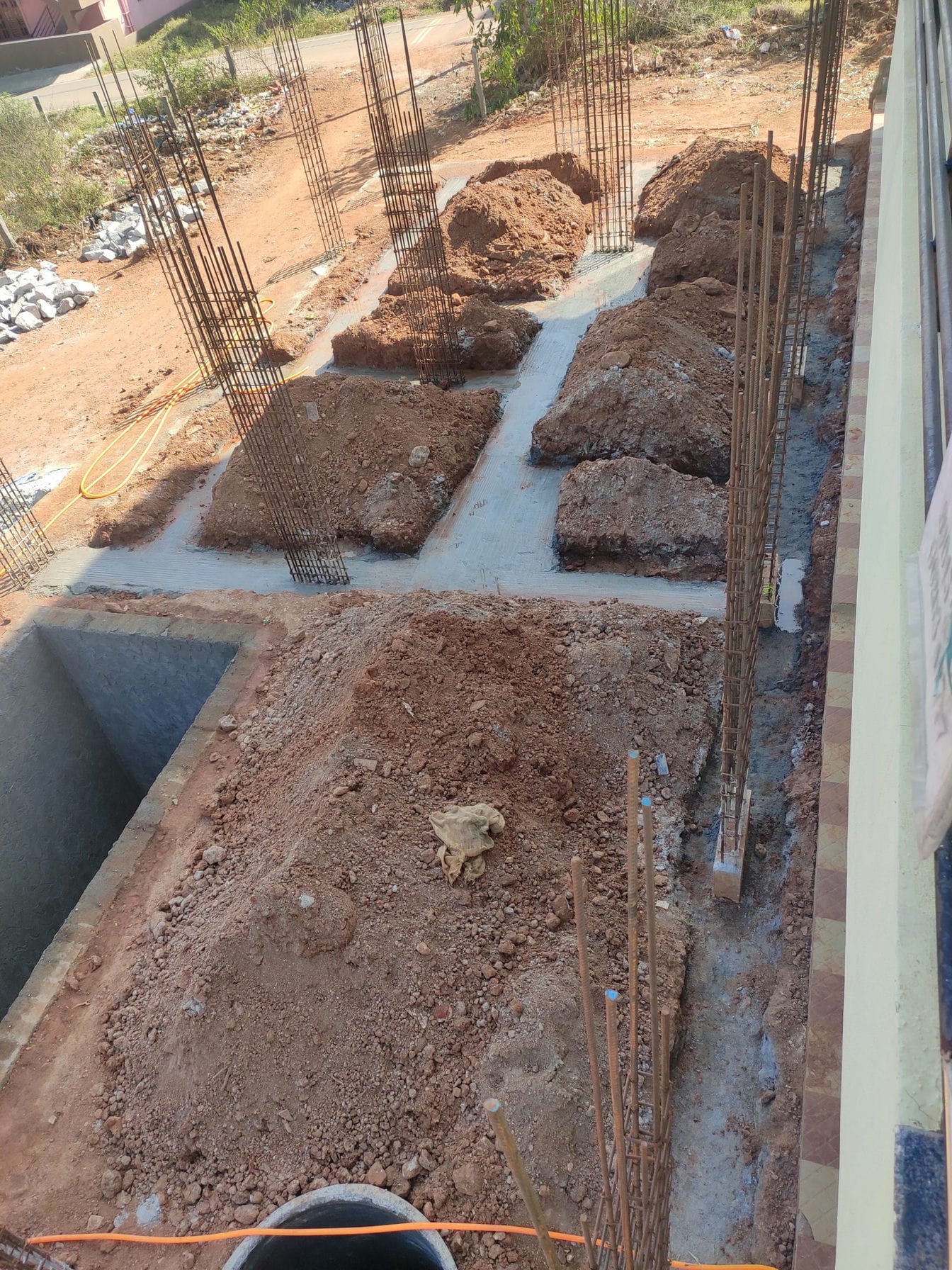

plinth beam area after PCC work

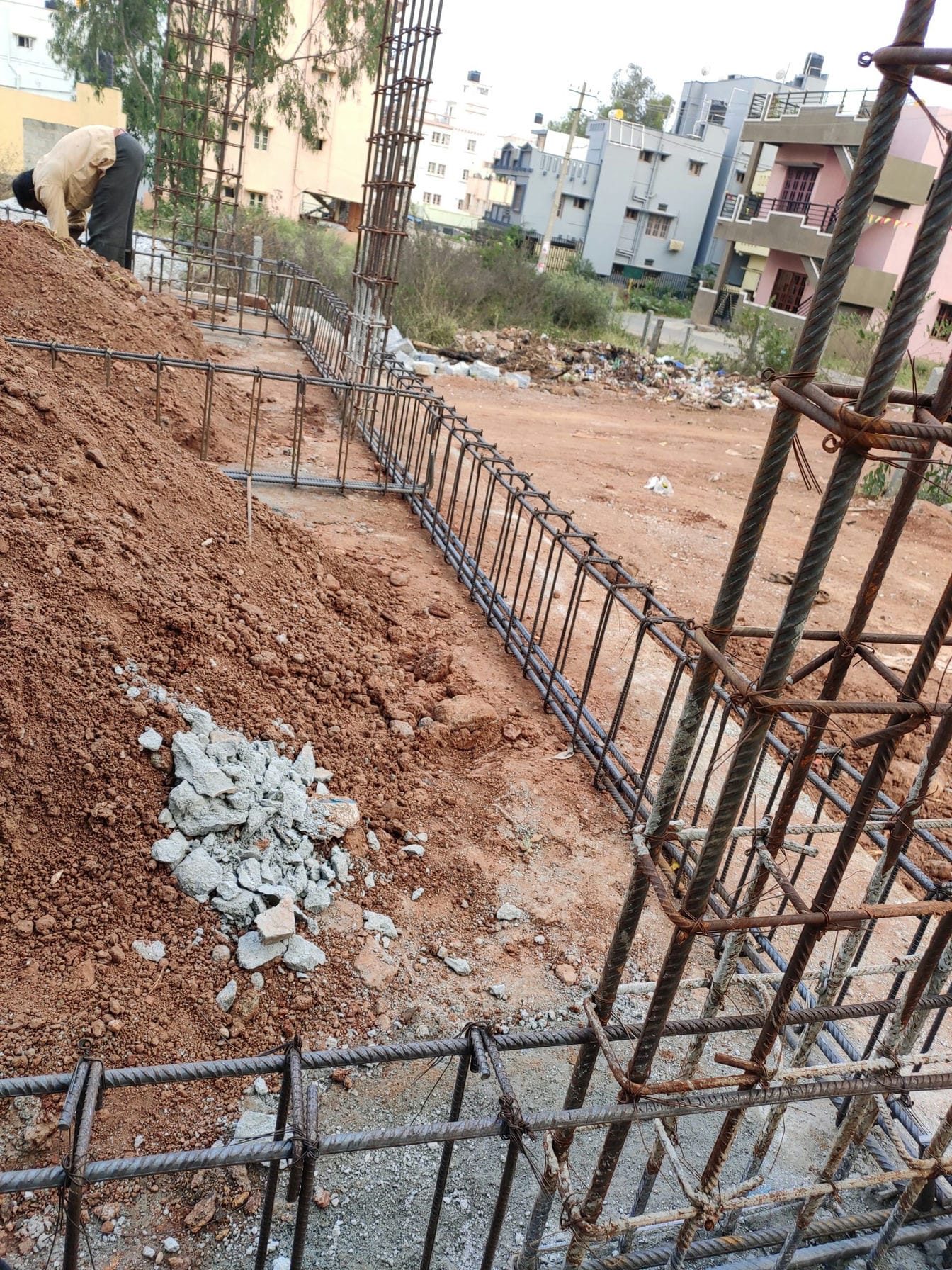

steel work done by barbenders

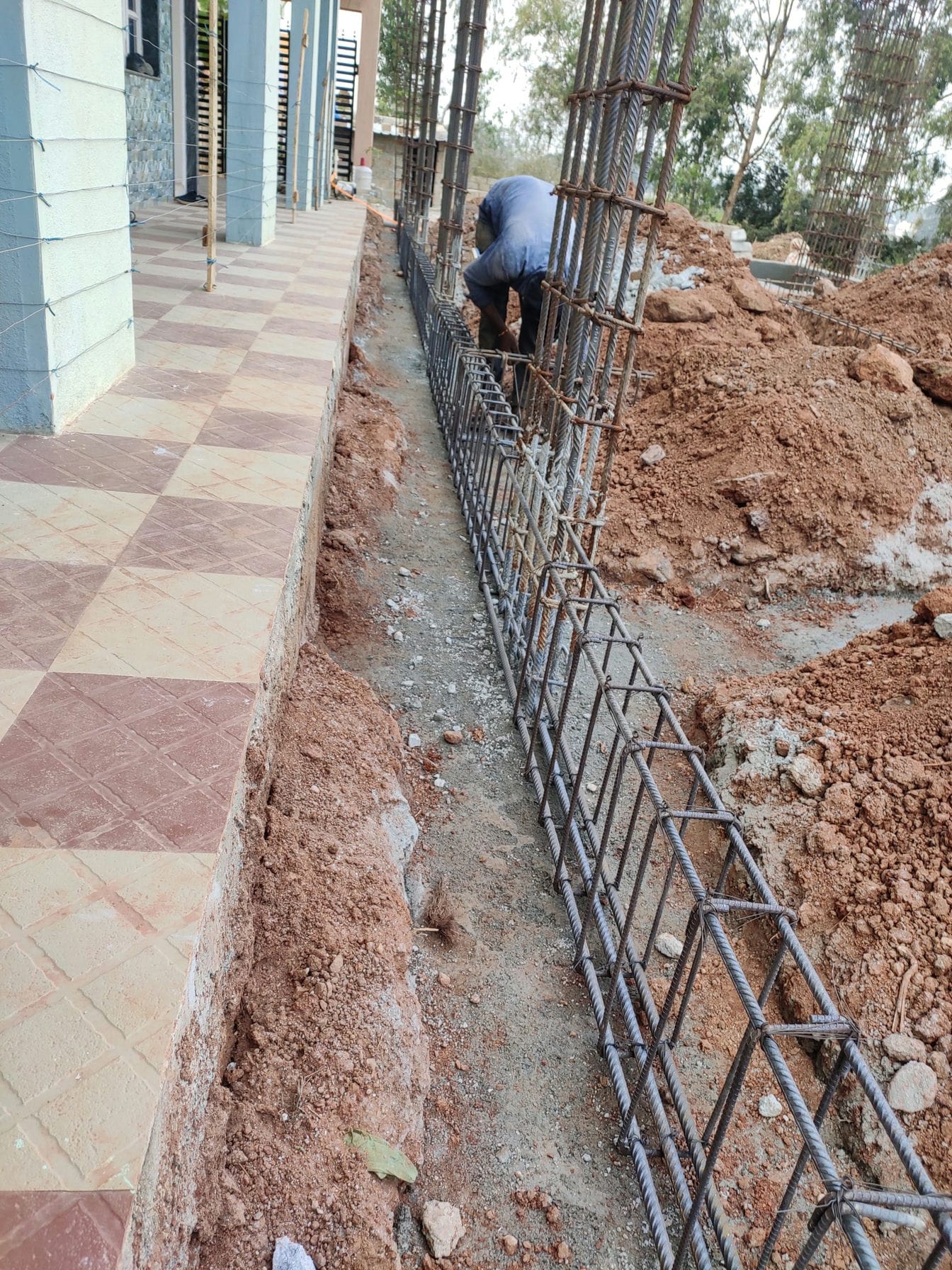

plinth beam steel on side

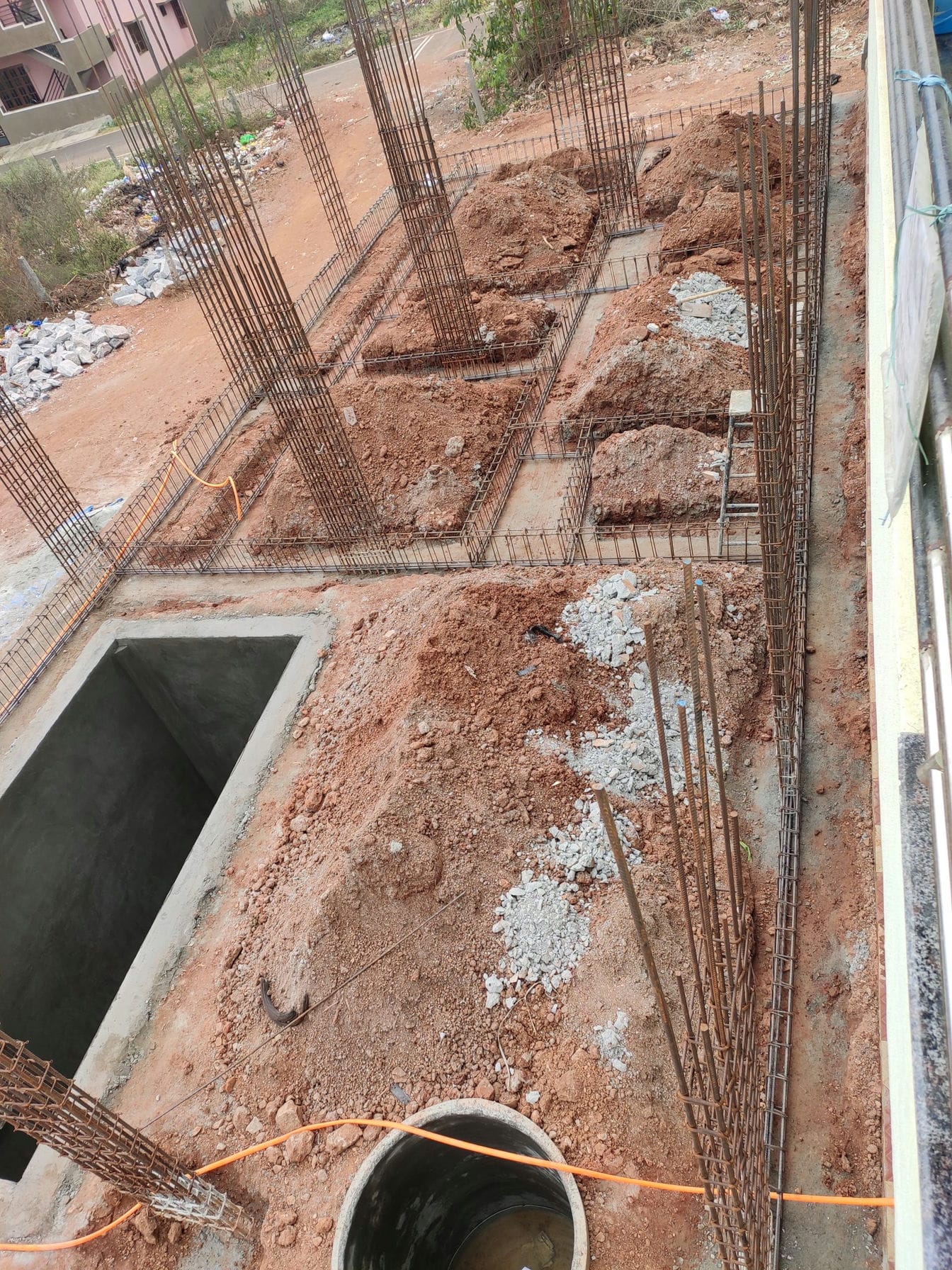

plinth beam top view

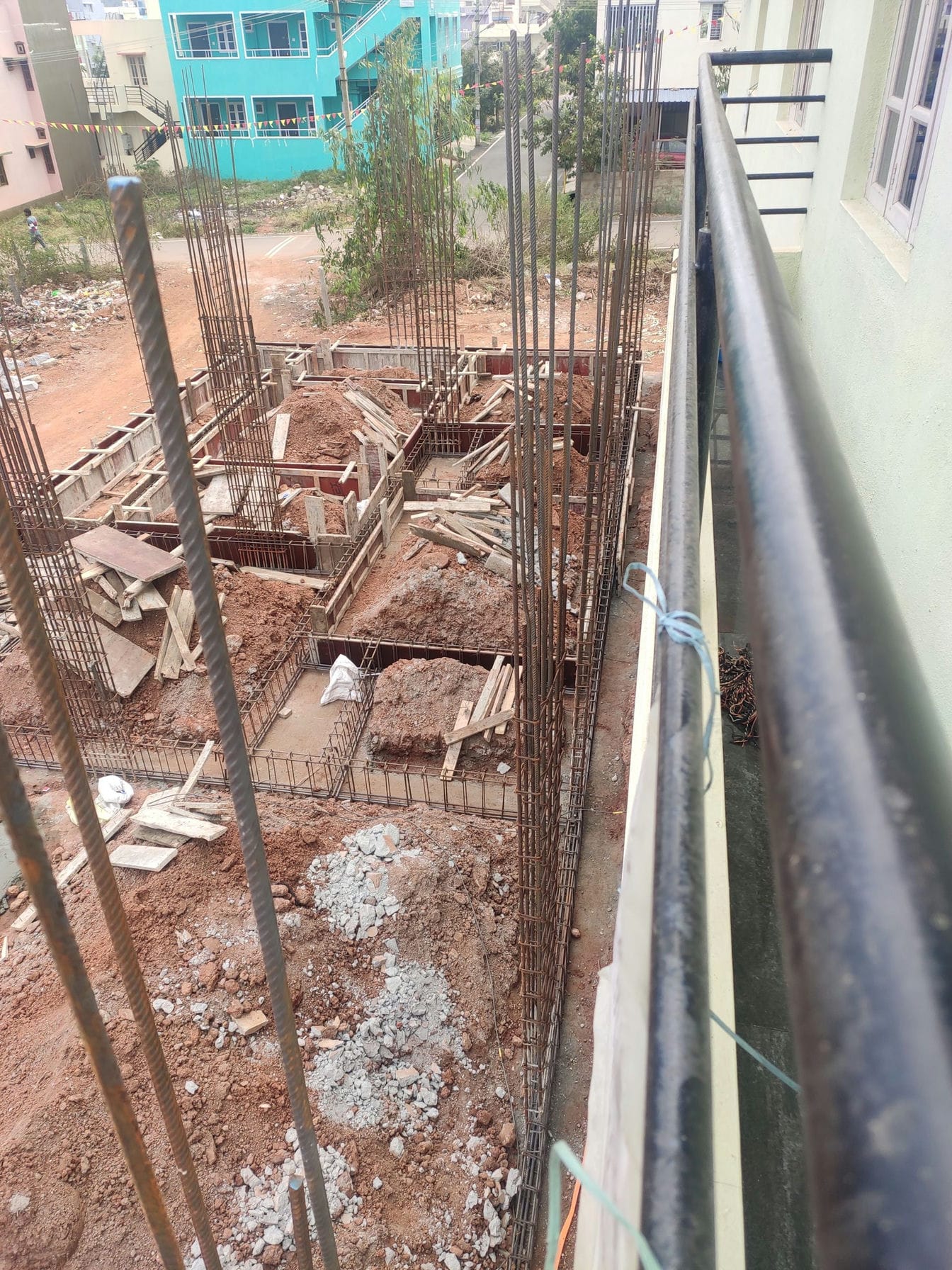

plinth beam centring

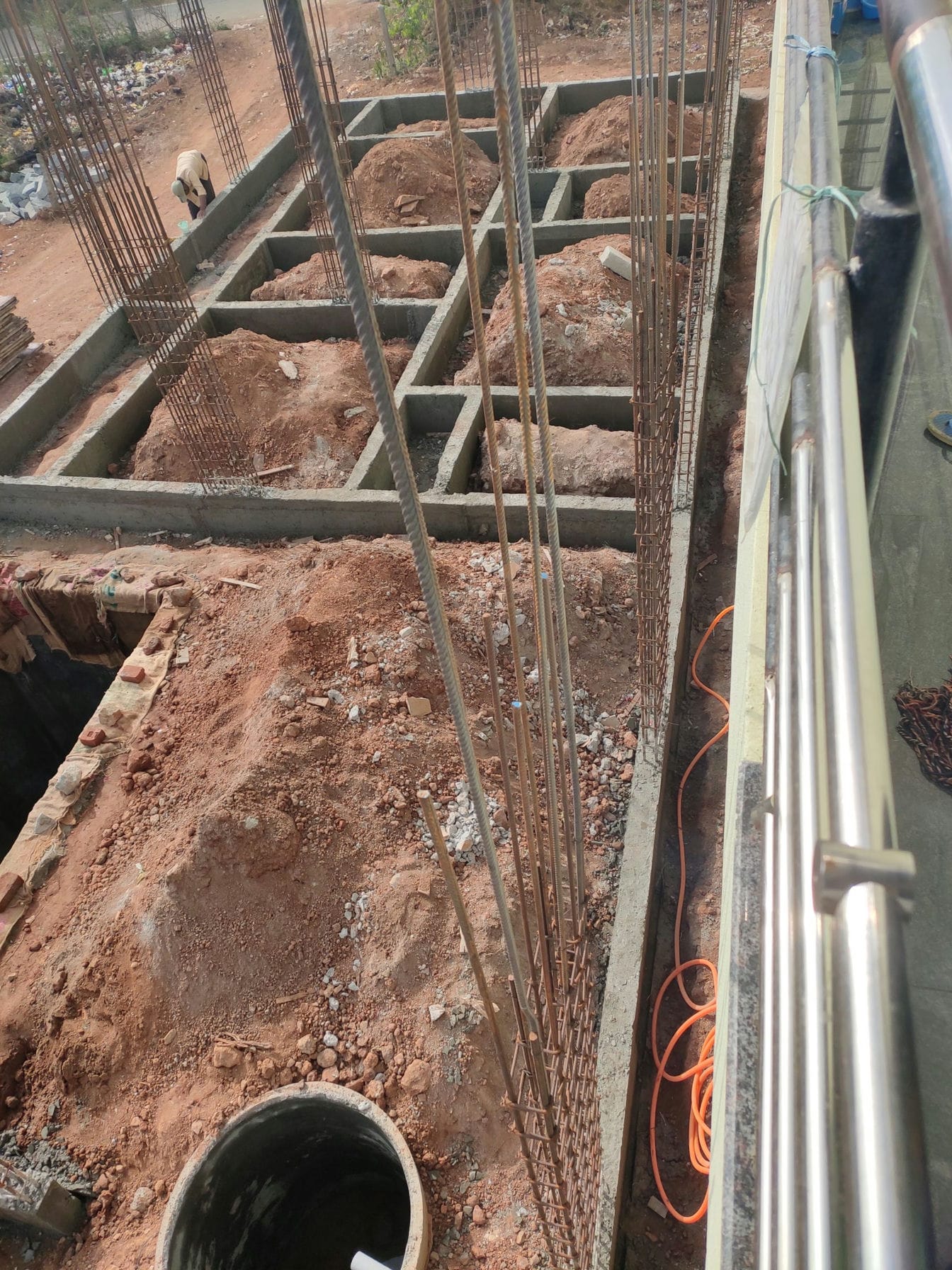

plinth beam after removing centring

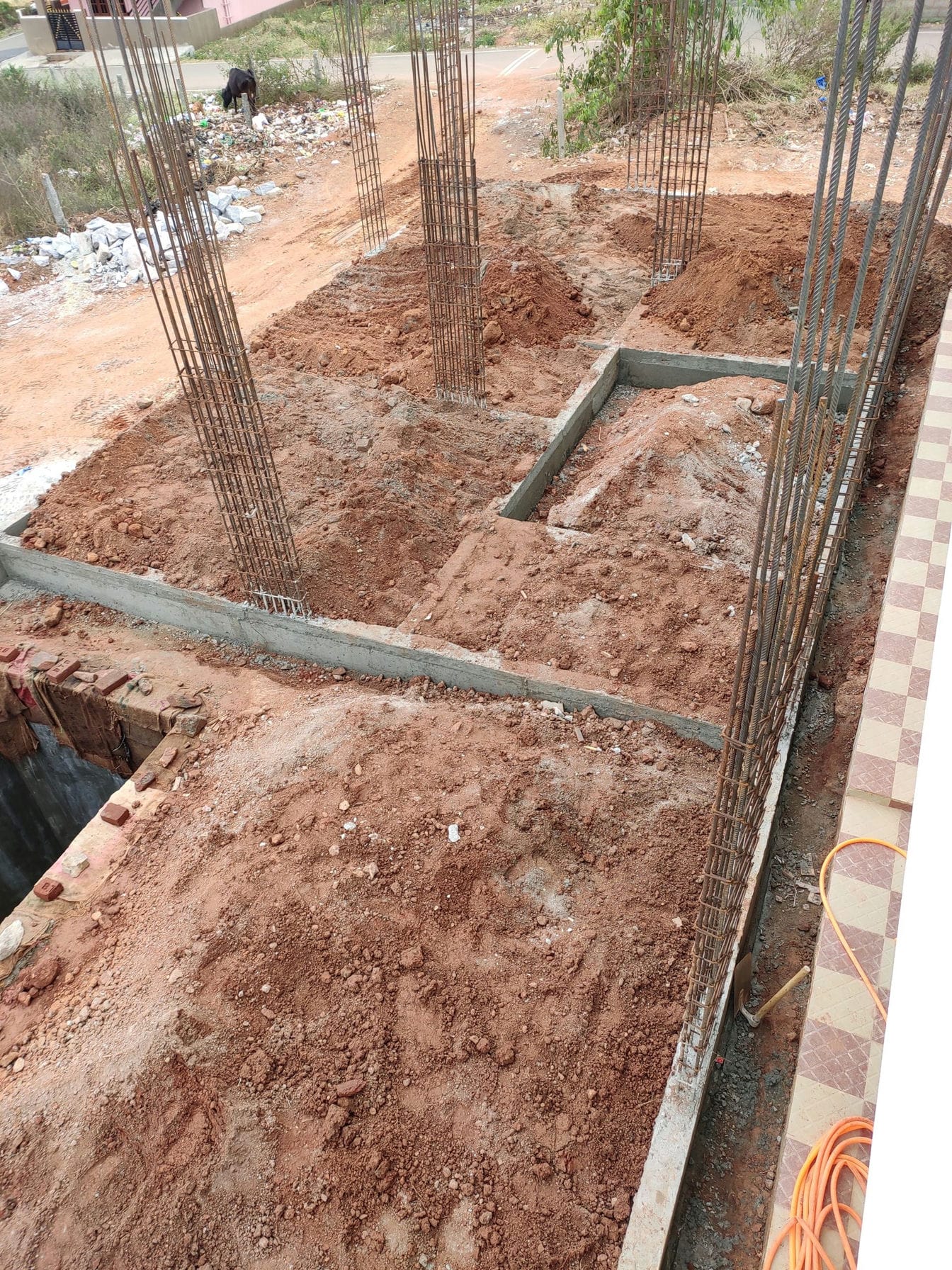

after filling soil inside plinth beam

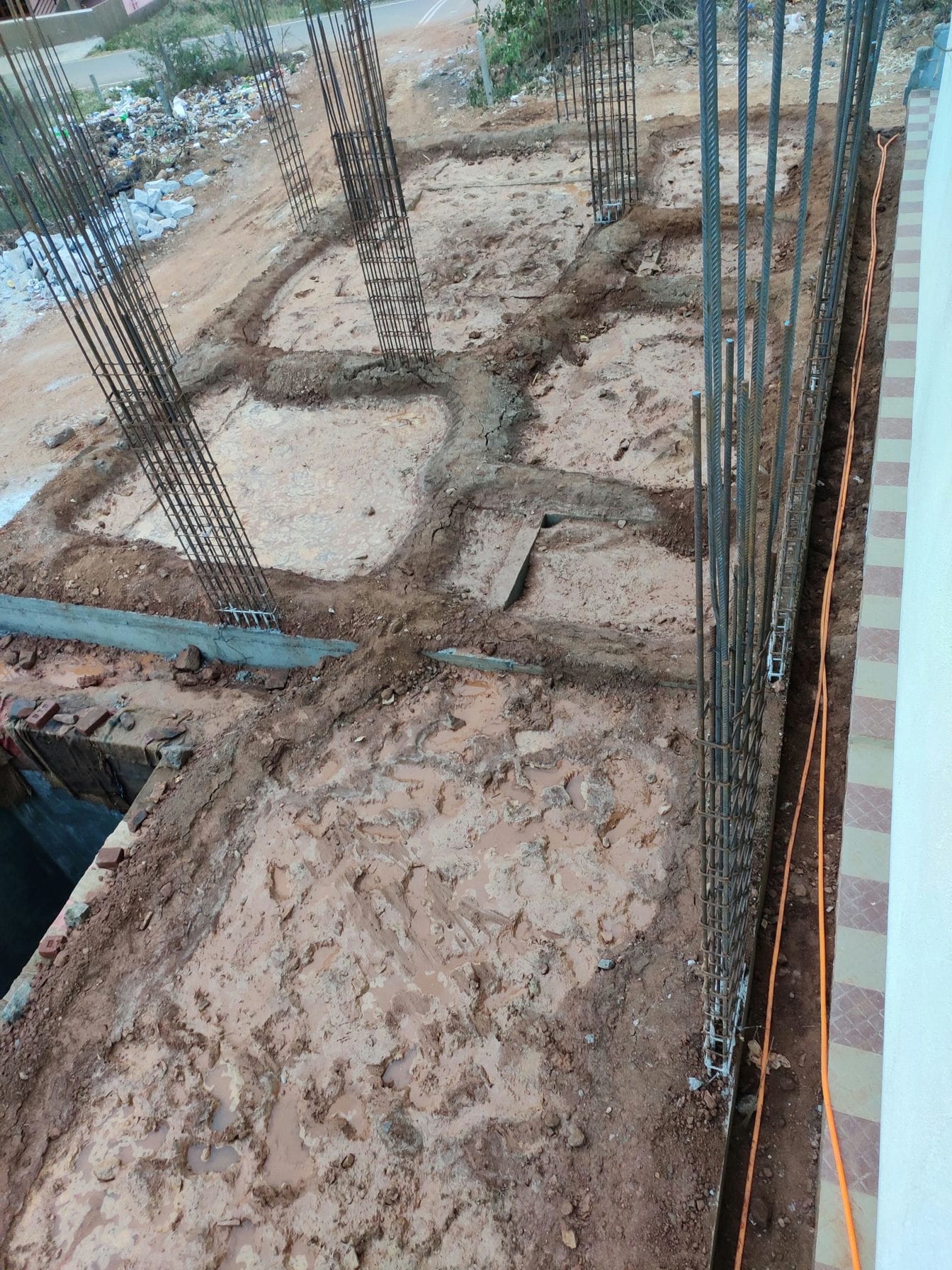

filling water inside plinth beam to compress soil

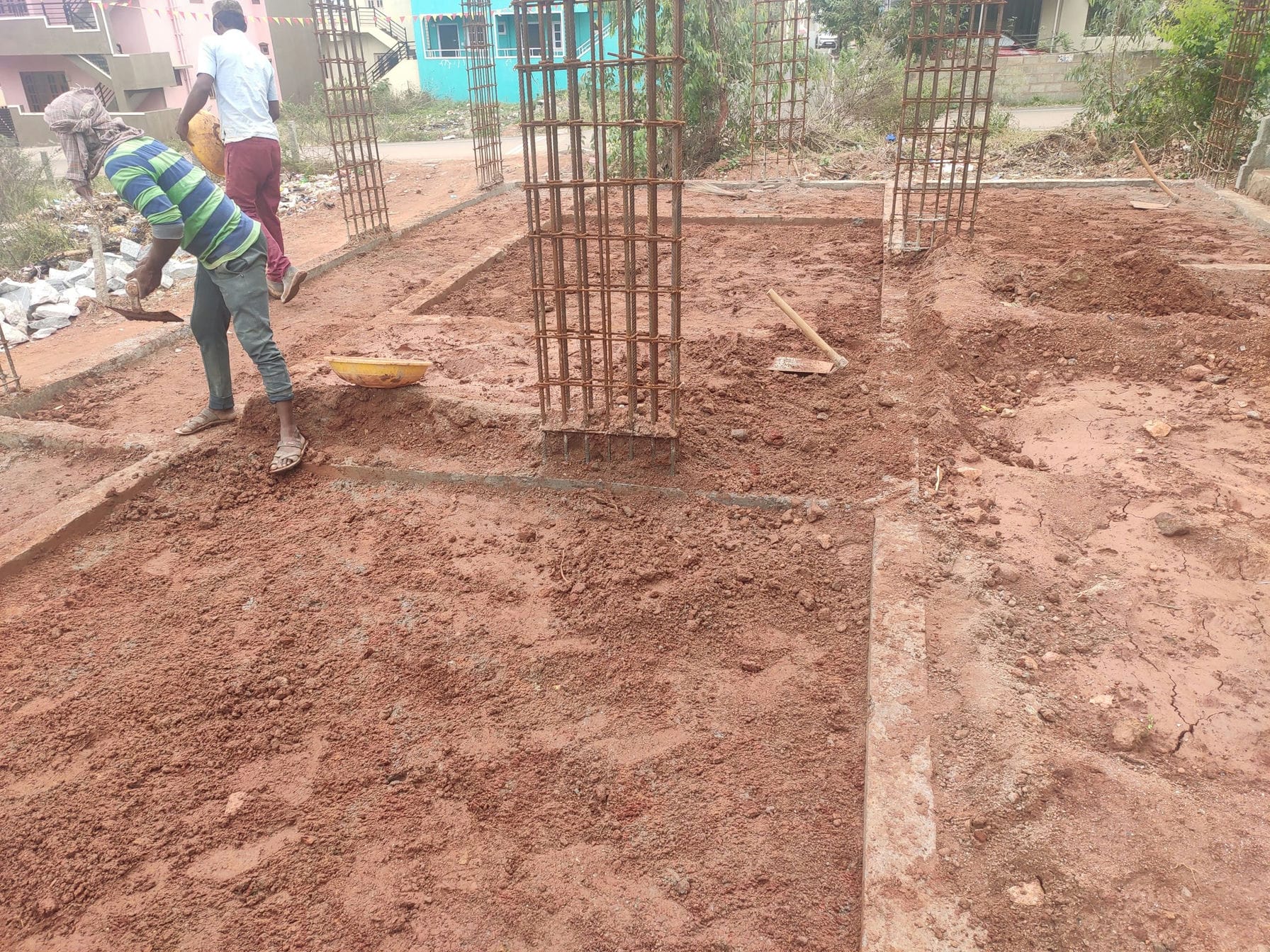

removing excess soil inside the plinth beam

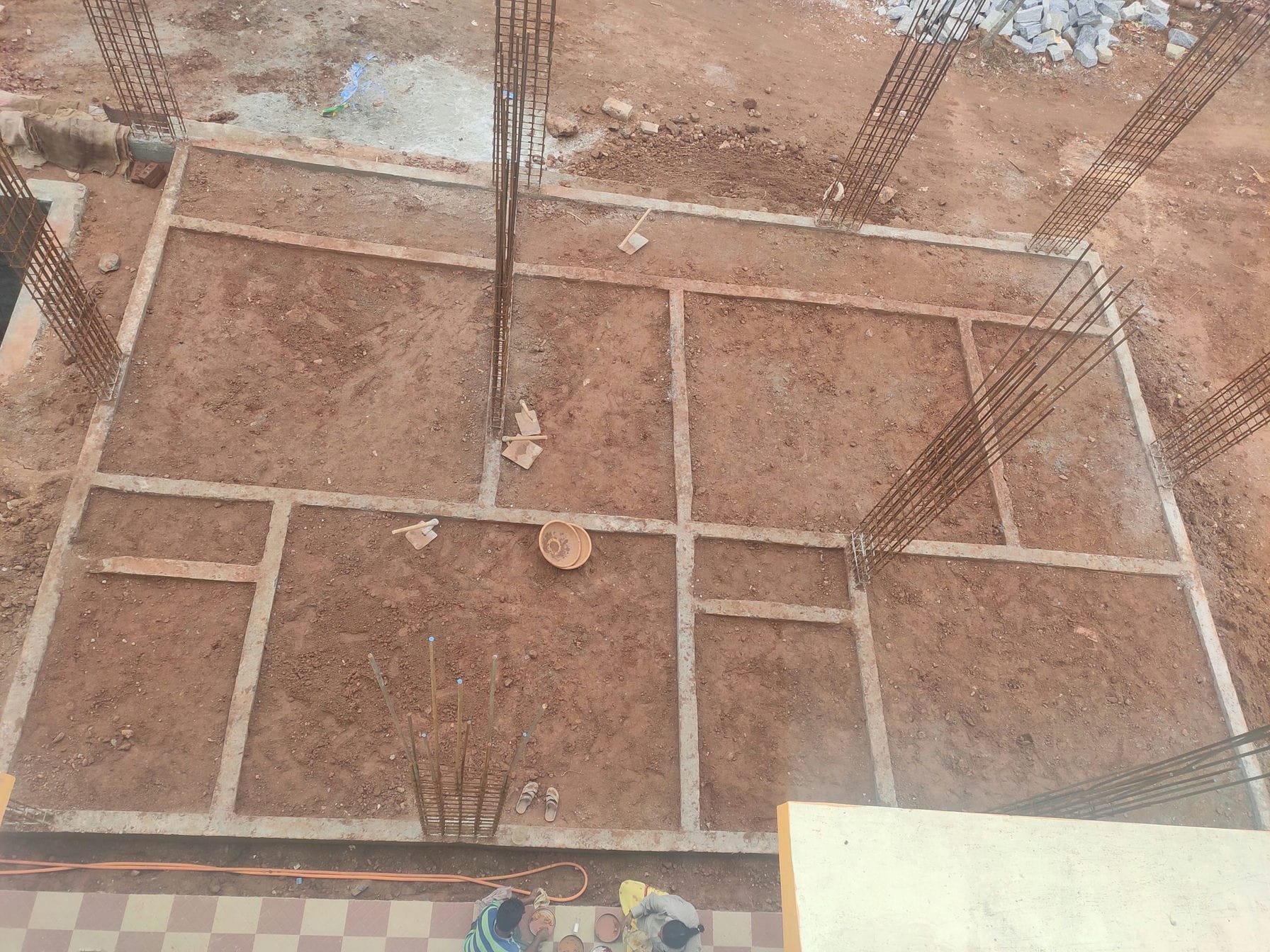

plinth beam top view after removing excess soil

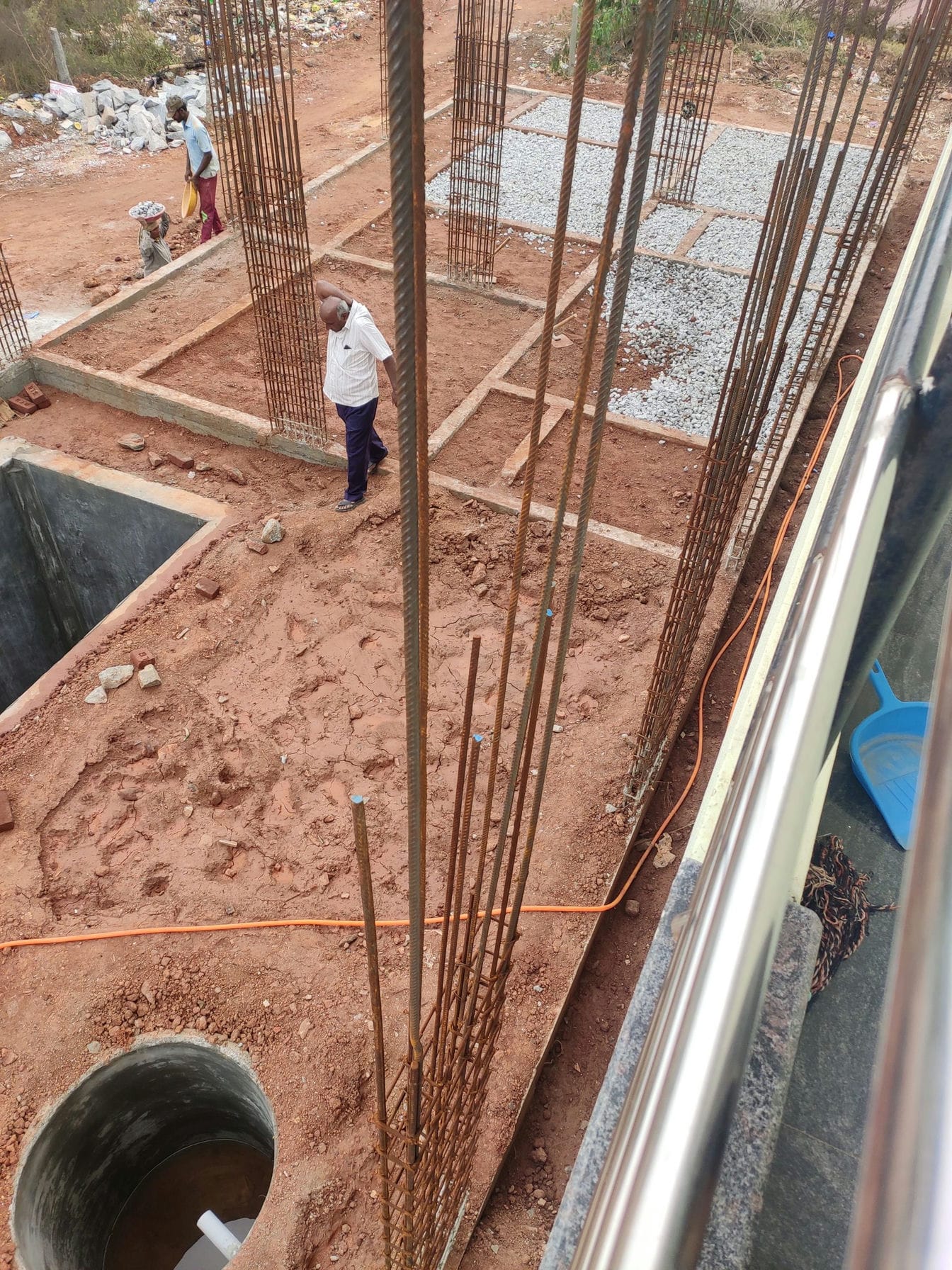

putting jelly inside plinth beam

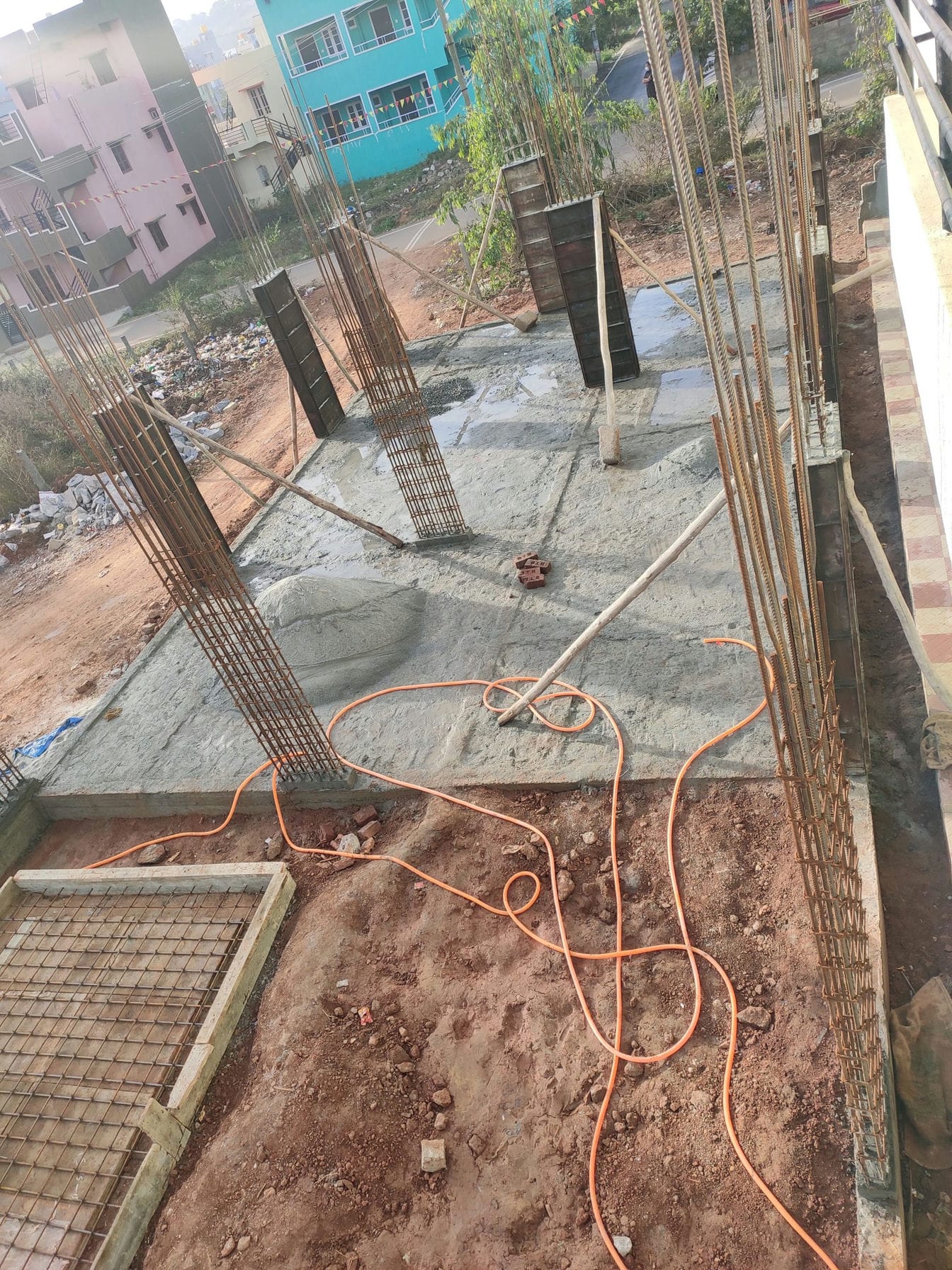

PCC work done inside the plinth beam
